															High Bay Glow Series
HIGH BAY GLOW SERIES —  is a cost-effective and compact high bay with super high efficacy 160lm/W, 200lm/W, 210lm/W. Together with twist central sensor makes the high bay solution more energy-saving and with higher performance. Optimized compact housing structure ensures excellent heat dissipation function with operating
temperature: °30-C to °50+C.
Product Features:
– Intelligent control: Twist microwave motion sensor and PIR sensor, 0-10 V dimmable.
– Multiple installations: loop hanging, ceiling mounting.
– PC and ALU reflector are optional.
Technical Data

															| PHYSICAL | |
| Body | Aluminum Alloy |
| Finish | Powder Coating / Black (RAL9017) |
| OPTICAL | |
| Optic | PC |
| ELECTRICAL | |
| Light source | LED |
| CRI | >70 (Ra80 optional) |
| CCT | 3000K,4000K,5000K |
| Driver | 220-240 VAC | 50-60Hz |
| 1-10V dimmable | |
| Microwave motion sensor, PIR sensor | |
| Ambient Temp. | -30°C ~ 50C° |
| Ambient Humidity | 10% ~ 90% |

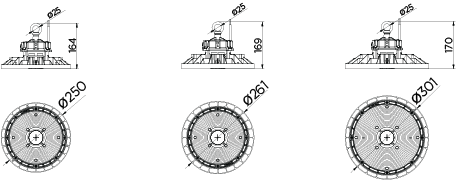

Technical Drawing
