															Sidra Fixed Series
SIDRA FIXED SERIES — is specially designed to deliver low-glare lighting, thanks to the round meshed grill, to façades, columns, monuments and trees with minimal installation depth. The fixture is made of a combination of 316L stainless steel and die-cast Aluminum. It has an optical PMMA secondary light distribution technology, viewing angle, light-gathering effects that can be adjusted by various lens according to demands and could be supplied with an optional honeycomb louvre and/or anti-slip glass.
Technical Data

															| PHYSICAL | |
| Body | Anodized die-cast Aluminum |
| Frame | Stainless Steel 316L |
| Recessing tube | Aluminum Alloy |
| OPTICAL | |
| Diffuser | 19mm Tempered Glass |
| Light Emission | Symmetrical |
| Aiming | Fixed |
| CRI | >80 |
| ELECTRICAL | |
| CCT | 3000K – 4000K – 5000K |
| Driver | Integrated LED driver | 220-240V | 50/60Hz |
| Ambient Temp. | -25°C ~ 50°C |
| Ambient Humidity | 10% ~ 90% |

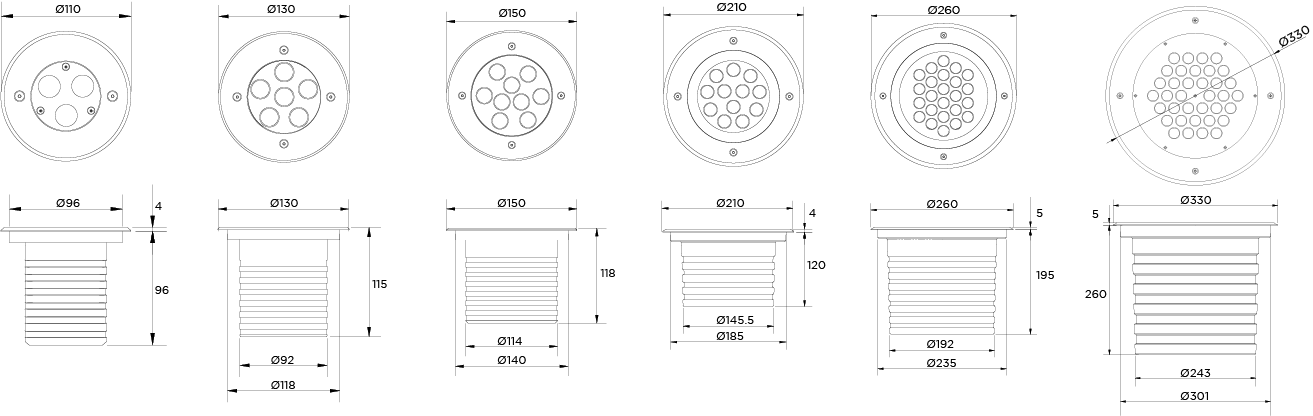

Technical Drawing
