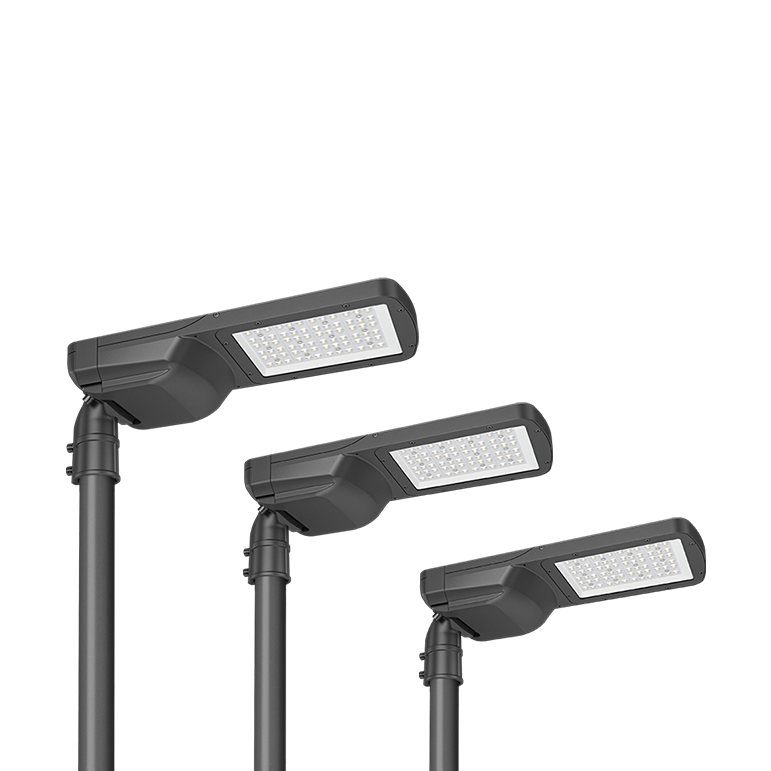

															SAQR Series
SAQR SERIES — Products Benefits & Features:
• Superior efficacy, up to 155 lm/W.
• 70% energy saving, short ROI period.
• Up to 100,000 hrs @ L70, low maintenance cost.
• World-class, approbated quality components.
• Tool-less opening of driver box, ease of maintenance.
• High-grade aluminum housing with stainless steel screws marine grade to ensure high quality and reliable operation.
• Support horizontal and vertical mounted, suitable for different light poles.
• Excellent outlook, robust and durable design.
• Lifetime of more than 100,000 hours.
• Easy and fast installation.
• Wide temperature operating range.
• IK10, IP66.
• Smart city simplified integration options.
• Wide choice of optics.
• 95% of the material used are recyclable materials.
• 5 years warranty.
Technical Data

															| PHYSICAL | |
| Body | High Pressure Die-cast Aluminum powder coated |
| Finish | Gray |
| OPTICAL | |
| Diffuser | Clear tempered glass |
| Beam Angle | SET201,SET202,SET303,SET304,SET305 |
| CRI | Ra> 70 (Default) / Ra>80 (available on request) |
| ELECTRICAL | |
| CCT | 3000K,4000K,5000K,5700K |
| Driver | 24Vdc |
| Ambient Temp. | -25°C ~ 50°C |
| Ambient Humidity | 10% ~ 90% |

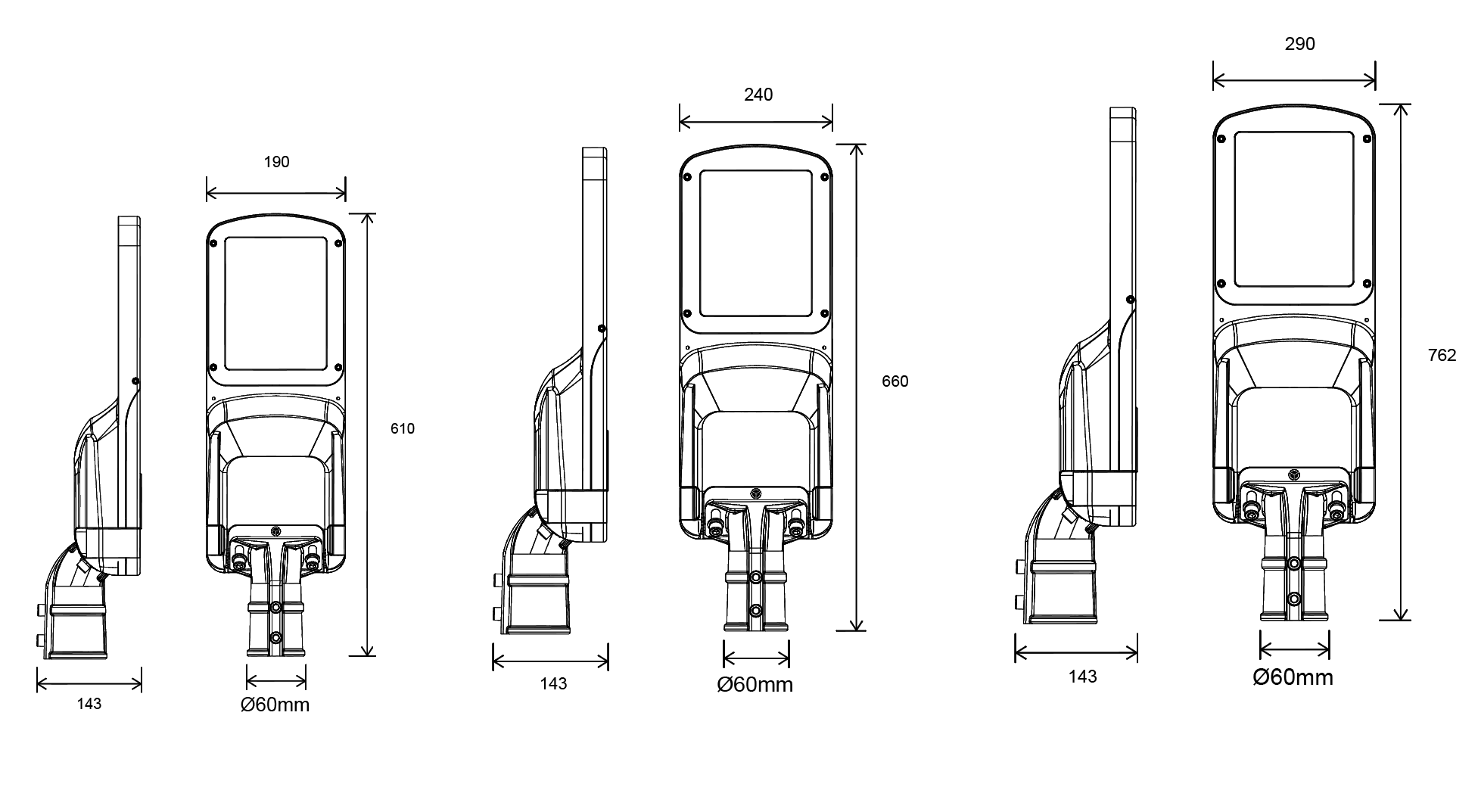

Technical Drawing
