Pansy Series

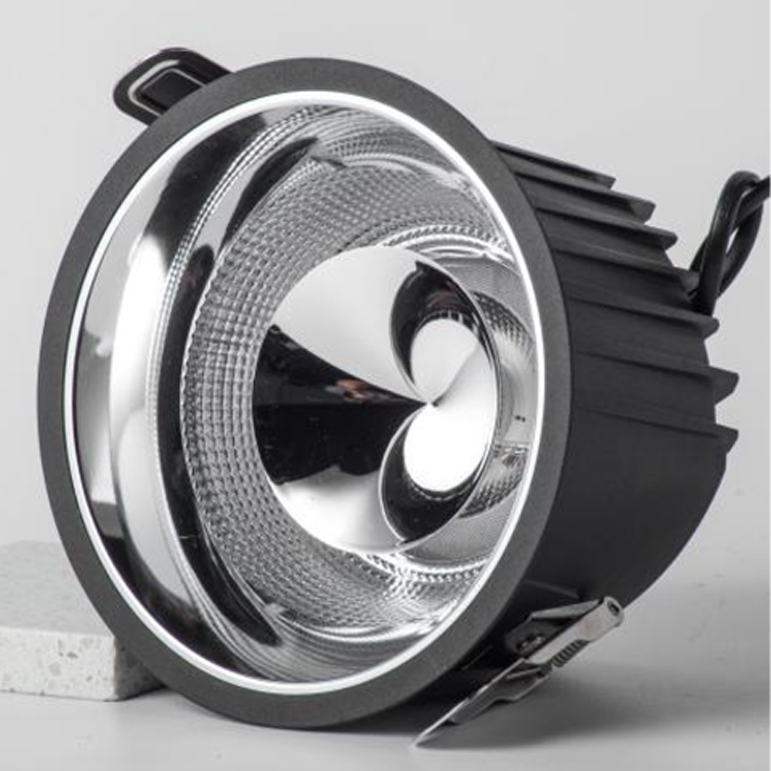

PANSY SERIES — is anti-glare downlight, it adopts high lumen light source, deep reflector and low glare UGR<16, which provides a comfortable visual experience. The aluminum profile provides excellent thermal dissipation and ensures a long
lifespan.
Technical Data
| PHYSICAL | Â |
| Body | Aluminum |
| Finish | White /Black |
| OPTICAL | Â |
| Diffuser | Polycarbonate |
| Beam Angle | 24° (COB) / 60° (SMD) |
| ELECTRICAL | Â |
| Light source | LED COB/SMD |
| Lumen | 85 lm/W |
| CRI | >80 |
| CCT | 2700K – 3000K – 4000K – 5000K – 6000K – 7000K |
| Driver | Electronic included | 50-60Hz |
| Â | 220-240VAC Non-Dimmable Driver |
| Â | 1-10V dimming or DALI on request |
| Ambient Temp. | -25°C ~ 45°C |
| Ambient Humidity | 10% ~ 90% |
| Light source Life | 50,000 h |
