															Orbit
ORBIT — Series stands out as a dependable option for pathways, landscaped areas, and various public spaces, thanks to its rounded structure, diverse column choices, and three-way light distribution.
-Reduced glare is achieved through a recessed light source.
-The three-way light distribution not only effectively illuminates pathways and areas but also introduces a distinctive visual effect.
-Various height options and a coordinating column make it suitable for high-end architectural projects.
-Its minimalistic design ensures seamless integration with diverse architectural styles.
Technical Data

															| PHYSICAL | |
| Body | Aluminium Extruded Profile |
| Finish | Polyester Powder Coated |
| Dimensions | Ø133xH1000mm |
| OPTICAL | |
| Diffuser | Clear Polycarbonate |
| Light distribution | Assymetric |
| ELECTRICAL | |
| Light source | LED |
| Lumen | 10W 1200lm |
| 20W 2400lm | |
| CRI | >80 |
| CCT | 3000K-4000K-5000K |
| Driver | Electronic Included |
| 220-240 VAC Non-Dimmable Driver | |
| 1-10V or DALI available on request | |
| Operating Temperature | -40°C ~ +50°C |
| Humidity | 10% ~ 90%RH |

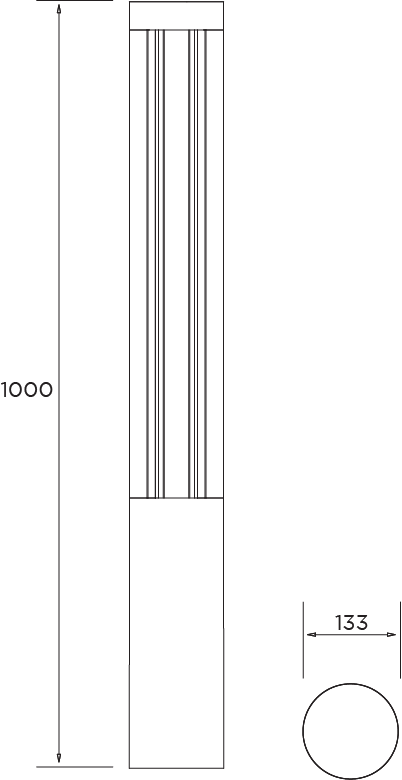

Technical Drawing
