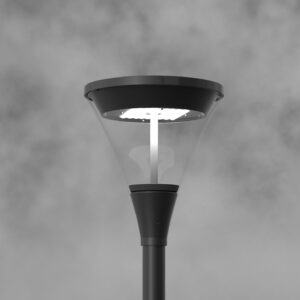

															BELL POLE
BELL POLE — aligns with the contemporary urban trend by incorporating sleek curvature, presenting a neat aesthetic, and ensuring effective heat dissipation. With a clear and fully rounded PC cover, it eliminates blind spots created by lamp arms, contributing to both safety and the visual appeal of urban spaces. It offers a range of control options, adding a touch of intelligence to the latest advancements in urban lighting solutions.
Technical Data

															| PHYSICAL | |
| Body | Aluminum alloy |
| Finish | Powder coating |
| Dimensions | ø371xH420mm |
| OPTICAL | |
| Diffuser | Polycarbonate optical lens |
| Light distribution | More than 10 optics lens for optional |
| ELECTRICAL | |
| Light source | LED |
| CRI | >70 |
| CCT | 3000K, 4000K, 5000K |
| Driver | Electronic Included |
| 220-240 VAC Non-Dimmable Driver | |
| 1-10V or DALI available on request | |
| Operating Temperature | -30°C ~ +50°C |
| Humidity | 10% ~ 90%RH |

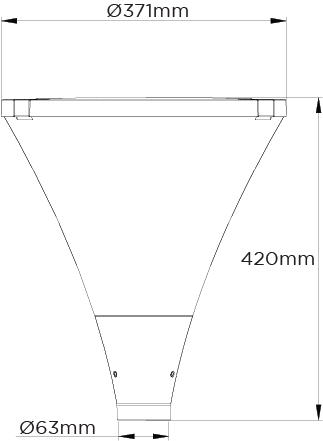

Technical Drawing
